  • A multi-functional foot with a complete carbon fiber structure.
  • +/- 5 degrees Torsion of Pyramid
  • +/- 10 degrees of Inversion and Eversion
  • Multi-axial body
  • Impact absorption by inner Plate
  • Wide body width to increase ground stability
  • 3D-Printed rings
  • Waterproof
  • K3-K4
  • Range in stock.
SKU: CFT22 Category:

Description

IB-ER Winged Foot 4

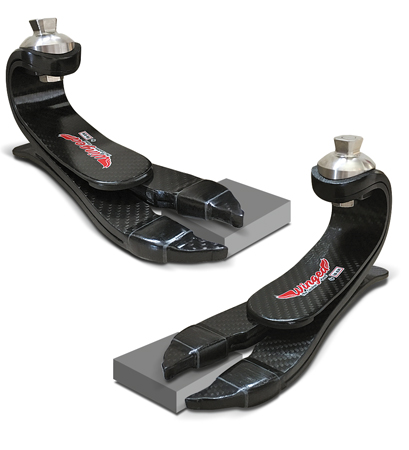

The IB-ER Winged Carbon Foot has been designed as a multi-functional foot with a complete carbon fiber structure.

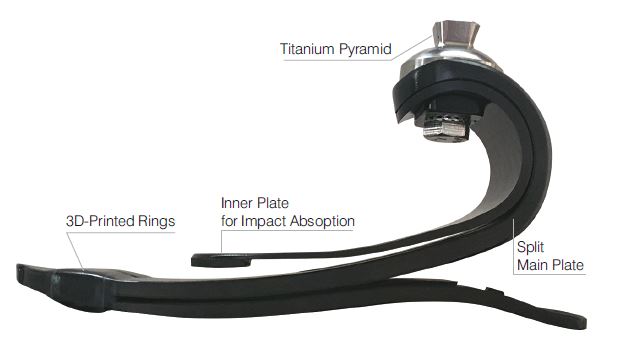

The IB-ER Winged Carbon Foot has two main plates. The two part divide allows +/- 10 degrees of inversion and eversion movement of the carbon foot. The split main plate design of the foot provides +/- 5 degrees of torsion from the pyramid section. For a smoother gait cycle, there is an additional inner carbon plate for comfort during the stance phase, causing the main plate to easily flex up to the point when the main plate shares the deflecting load with the inner plate.



IB-ER Winged Foot 5

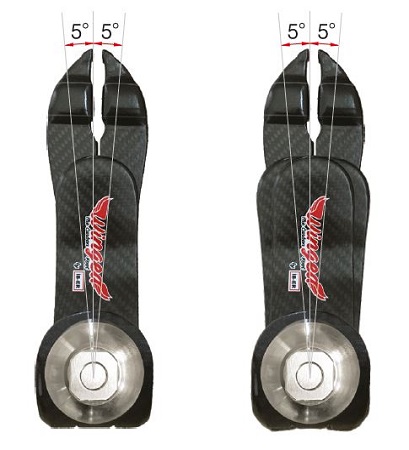

Thanks to its split lines on the main plate, the pyramid section of the foot easily flexes from the center of the pyramid and causes +/- 5 degrees of torsion.

IB-ER Winged Foot 7

Technical Information
Target Users: Moderate impact, K3-K4 level patients
Stiffness Categories: 1 to 5
Connector Type: Titanium Male Pyramid
Max. Body weight: 120 kg
Size range: 23 to 29IB-ER Winged Foot 6Impact Absorption

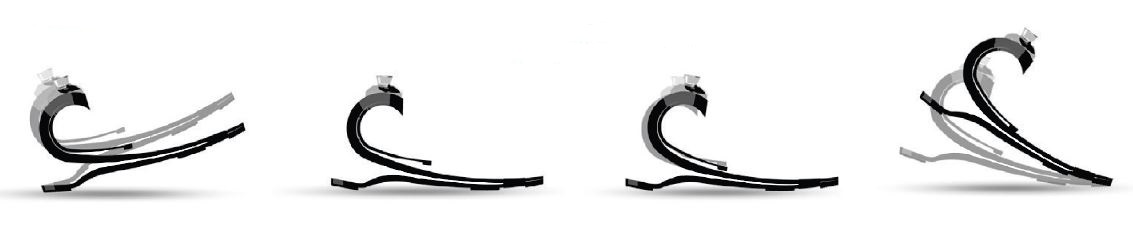

When a dynamic load is placed on the toe, the main carbon plate deflects up to a point when the load becomes shared with the C-shaped inner carbon plate. In this situation, the inner plate behaves like a shock absorber and shares the impact force with the main plate. This movement also supports energy return to toe-off phase.

IB-ER Winged Foot 8



CODE

 DESCRIPTION

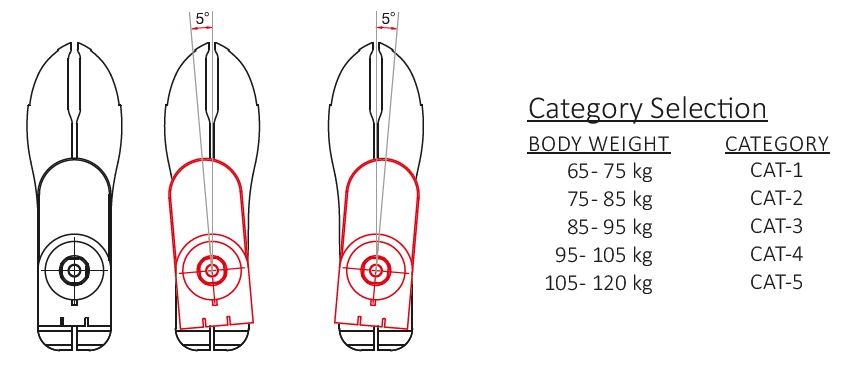

CFT22-23C1 IB-ER Winged Carbon Foot Size 23 CAT-1 (65-75kg)
CFT22-24C1 IB-ER Winged Carbon Foot Size 24 CAT-1 (65-75kg)
CFT22-24C2 IB-ER Winged Carbon Foot Size 24 CAT-2 (75-85kg)
CFT22-25C1 IB-ER Winged Carbon Foot Size 25 CAT-1 (65-75kg)
CFT22-25C2 IB-ER Winged Carbon Foot Size 25 CAT-2 (75-85kg)
CFT22-26C2 IB-ER Winged Carbon Foot Size 26 CAT-2 (75-85kg)
CFT22-27C2 IB-ER Winged Carbon Foot Size 27 CAT-2 (75-85kg)
CFT22-28C2 IB-ER Winged Carbon Foot Size 28 CAT-2 (75-85kg)
CFT22-28C3 IB-ER Winged Carbon Foot Size 28 CAT-3 (85-95kg)

A special order can be placed for sizes and categories not included in the list above. Please email your request through to sales@ortholam.co.za.

IB-ER

IB-ER Prosthetics is a family run machining and manufacturing company established in 1988 in Izmir, Turkey, producing high quality titanium and stainless steel prosthetic components with ISO13485:2012 and ISO9001:2008 quality management systems and CE safety standards. In addition to producing modular prosthetic components, IB-ER also produces carbon fiber feet with high energy returns and lightweight structures.
